Kugelhähne gehören zu den Absperrarmaturen. Die Kugelhähne können per Hand oder mit einem Antrieb betätigt werden. Durch den ISO Aufbauflansch können bei vielen Kugelhahntypen elektrische oder pneumatische Antriebe montiert werden. Desweiteren gibt es die Möglichkeit Endschalterboxen direkt auf einen Kugelhahn zu montieren.

Je nach Anforderung gibt es Kugelhähne auch mit verschiedenen Zulassungen:

- TA Luft

- DVGW Gas

- Fire safe

Textsuche

Kategorien

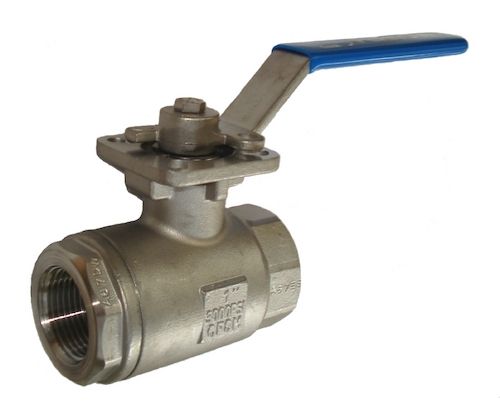

Type PA-284HP.866, PN 205, thread according to DIN 2999, handlever, operating temperature: max. 260°C, body: 1.4408, ball: 1.4408, seat: PEEK, release bore with ISO-Directmountingpad

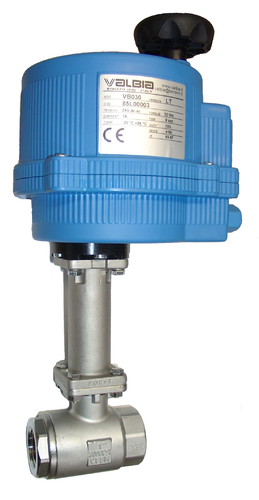

Thread according to DIN 2999, operating temperature: max. 260°C,  body: 1.4408, ball: 1.4408, seat: PEEK, release bore, electric actuator, manufacturer Valbia, pivoting angle 90°, manual override with handwheel,  temperature: -20°C up to +55°C, 2 free limit switches, torque limiter, protection class IP 65,  ED 75% (VB015: 50%), voltage: 24V/115V/230V AC, 12V/24V DC, stem extension: 100mm

Thread according to DIN 2999, operating temperature: max. 260°C, body: 1.4408, ball: 1.4408, seat: PEEK, release bore,

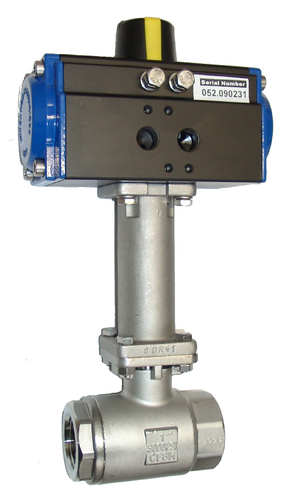

pneumatic actuator, double acting (DA) or spring return (SR), necessary actuating pressure: 6 bar,  stem extension: 100mm

Type PA-19HP.266.PE (PN 16)
Type PA-19HP.466.PE (PN 40)

full port, 2-pc., face to face according to DIN 3202 F4, from DN 125 F5, flange after DIN PN 10/40,
from DN 65 PN 10/16, handlever, operating temperature: max. 260°C,
body: stainless steel 1.4408, ball: 1.4408, seat: PEEK, release bore, with ISO-Directmountingpad

Full port, 2-pc., face to face according to DIN 3202 F4, from DN 125 F5, flanges according to DIN PN 10/40,  from DN 65 PN 10/16, operating temperature: max. 260°C, body: stainless steel 1.4408, ball: 1.4408, seat: PEEK, release bore, electric actuator, manufacturer Valbia, pivoting angle 90°, manual override with handwheel,  temperature: -20°C, up to +55°C, 2 free limit switches, torque limiter, protection class IP 65, ED 75% (VB015: 50%), voltage: 24V/115V/230V AC, 12V/24V DC

Type PA-19HPP.266.PE Full port, 2-pc., face to face according to DIN 3202 F4, from DN 125 F5, flange according to DIN PN 10/40,  from DN 65 PN 10/16, operating temperature: max. 260°C, body: 1.4408, ball: 1.4408, seat: PEEK, release bore, pneumatic actuator, double acting (DA) or spring return (SR), necessary actuating pressure: 6 bar, stem extension: 100mm

female thread, PN 410, full port, handlever, operating temperature: max. 260°C, body: CF8M, ball: CF8M, seat: PEEK, with ISO-Mountingpad,  PA-341.966-TH: with threaded ends PA-341.966-BW: with butt weld ends

Full port, 2-pc., face to face according to EN 558-1 serie 1, flanges according to DIN PN 16,  operating temperature: max. 160°C, handlever, with mountingpad

Type PA-844.235.P: body: 1.0619 + PFA, ball: 1.4308 + PFA, seat: PTFE

Type PA-844.266.P: body: 1.4408 + PFA, ball: 1.4408 + PFA, seat: PTFE

Female thread, PN 135, full port, handlever, operating temperature: max. 425°C, body: 1.4408, ball: 1.4408 hard chromed, seat: AISI 316 stellite, with ISO-Directmountingpad, with butt weld ends

Female thread, PN 135, full port, handlever, operating temperature: max. 425°C, body: 1.4408, ball: 1.4408 hard chromed, seat: AISI 316 stellite, with ISO-Directmountingpad, with threaded ends

Type PA-019MS.266.M (PN 16)

Type PA-019MS.466.M (PN 40)

Full port, 2-pc., face to face according to EN558-1 Series 1, flanges according to DIN PN 16 or 40, handlever,  operating temperature: max. 450°C, body: stainless steel A351-CF8M, ball: AISI-316 + Ni60,  seat: AISI-316 + Ni60, with ISO-Mountingpad

Type PA-870.266.P (PN 16)
Type PA-870.466.P (PN 40)

Full port, 2-pc., face to face according to EN 558, flange according to DIN PN 16 or PN 40,
operating temperature: -196 – up to +150°C, body: 1.4408, ball: 1.4408, seat: PCTFE, handlever,
release bore, with ISO-Directmountingpad

Technische Informationen

Ausführung

Kugelhähne gibt es in verschiedenen Ausführungen. Bei der Ausführung unterscheidet man zwischen 1-teiligem, 2-teiligem oder 3-teiligem Kugelhahn. 1-teilige Kugelhähne haben meist einen reduzierten Durchgang, während 2- und 3-teilige Kugelhähne einen vollen Durchgang besitzen.

Anschlussarten

Wir haben verschiedene Anschlussarten im Programm. Die Kugelhähne erhalten Sie mit Gewinde-, Flansch- oder Anschweißende.

Gehäusematerial

Bei dem Gehäuse gibt es folgende Materialien zur Auswahl:

- Messig

-Stahl

-Edelstahl

-Grauguss

-Sphäroguss

Betätigung. Betätigung

Alle Kugelhähne können von Hand betätigt werden. Die Bewegung kann mit einem Handhebel oder einem Handrad mit Getriebe (Aufbauflansch erforderlich) ausgeführt werden. Bei den Kugelhähnen mit Aufbauflansch gibt es vielfältigste Antriebsmöglichkeiten. Für die Pneumatikantriebe muss zwischen einfach- oder doppeltwirkend entschieden werden. Bei den elektrischen Antrieben gibt es die Auswahl zwischen 24 V, 230 V und 400 V.

Nennweiten

Unsere Kugelhähne bieten wir von der Größe 1/4" bis 4" und DN 8 bis DN 600 an.

Zeugnisse und Zulassung

Für fast alle Kugelhähne sind Prüfzeugnisse 2.2 und 3.1 verfügbar. Aber auch Zeugnisse und Zulassungen sind für besondere Anforderungen möglich:

-TA Luft

-DVGW-Gas

-DVGW Trinkwasser

-Atex-Feuersafe
