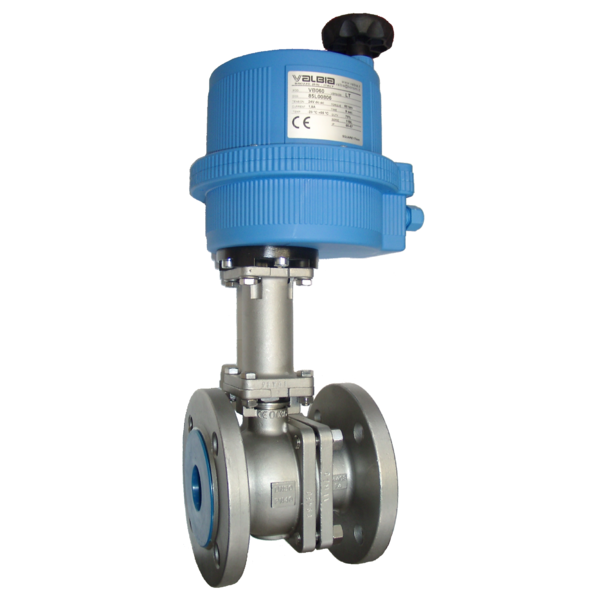

Flanged ball valve (stainless steel) with electric actuator, Type PA-19HPE.266.PE

Full port, 2-pc., face to face according to DIN 3202 F4, from DN 125 F5, flanges according to DIN PN 10/40,  from DN 65 PN 10/16, operating temperature: max. 260°C, body: stainless steel 1.4408, ball: 1.4408, seat: PEEK, release bore, electric actuator, manufacturer Valbia, pivoting angle 90°, manual override with handwheel,  temperature: -20°C, up to +55°C, 2 free limit switches, torque limiter, protection class IP 65, ED 75% (VB015: 50%), voltage: 24V/115V/230V AC, 12V/24V DC
