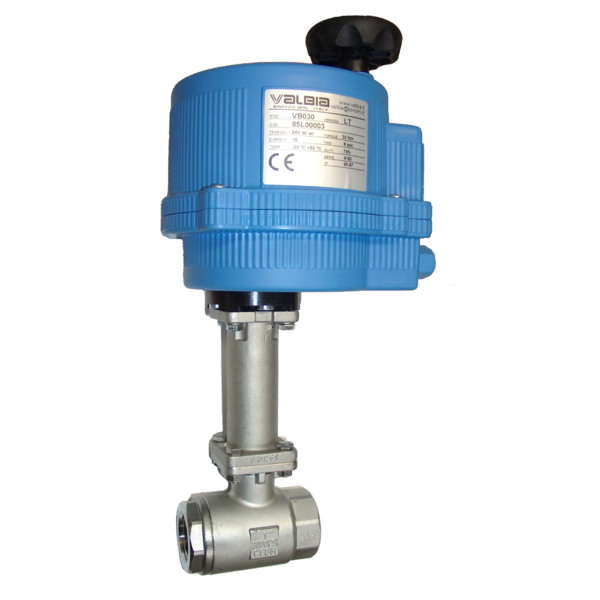

Threaded ball valve (stainless steel) with electric actuator, type PA-284HPE.866

Thread according to DIN 2999, operating temperature: max. 260°C,  body: 1.4408, ball: 1.4408, seat: PEEK, release bore, electric actuator, manufacturer Valbia, pivoting angle 90°, manual override with handwheel,  temperature: -20°C up to +55°C, 2 free limit switches, torque limiter, protection class IP 65,  ED 75% (VB015: 50%), voltage: 24V/115V/230V AC, 12V/24V DC, stem extension: 100mm
