Straight pattern, PN 16, female thread, handwheel, operating temperature: max. 205°C,

body: 1.4408, trim: 1.4408, gland packing: PTFE

Wafer type knife gate valve, body: EN-GJS-400-15 EKB, gate: AISI 304 or AISI 316,

seat: NBR, packing: NBR, support plates: stainless steel, non rising stem and handwheel,

flanges according to DIN 2501 PN 10, face to face according EN 558-1 series 20 (K1)

Type PA-7300.125.NN: gate AISI 304

Type PA-7300.126.NN: gate AISI 316

Straight pattern, PN 16, female thread, handwheel, operating temperature: max. 90°C,

body: brass, trim: brass, gland packing: PTFE

Wafer type knife gate valve, body: GG-25 EKB or stainless steel CF8M, knife: AISI 304,

seat: EPDM (Standard), metal seated, NBR, FPM or PTFE, packing: Synth. + PTFE

flanges according to DIN 2501 PN 10

Type PA-A12: rising stem / nonrising handwheel

Type PA-A30: quick closing lever

Type PA-A40: pneumatic actuator

Type PA-A50: electric actuator, type AUMA SA

DVGW drinking water approval

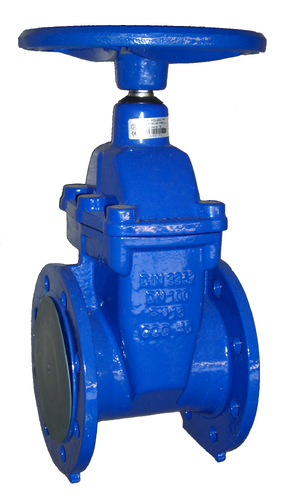

Resilient flat-body gate valve according to DIN 3352-Teil 4, flange connection according to DIN,
PN 16, from DN 200: PN 10 or PN 16,
body: GGG-50, EKB-coated, wedge: GGG-50 EPDM coated,
face to face according to F4, without handwheel

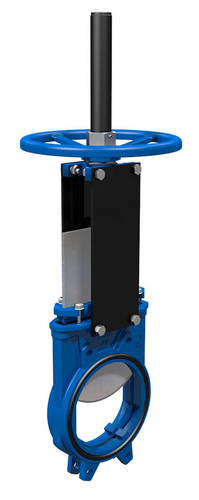

Wafer type knife gate valve, body: GG-25 EKB or stainless steel CF8M,

seat: EPDM (Standard), NBR, Viton or Silicone, packing: Synth. + PTFE,

flanges according to DIN 2501 PN 10

Type PA-AB12: rising stem / nonrising handwheel

Type PA-AB40: pneumatic actuator, double acting

Type PA-AB50: electric actuator, type AUMA SA

DVGW drinking water approval
Resilient oval-body gate valve according to DIN 3352-Teil 4, flange connection according to DIN,
PN 16, from DN 200: PN 10 or PN 16,
body: GGG-50, EKB-coated, wedge: GGG-50 EPDM coated,
face to face according to F5, without handwheel

Wafer type knife gate valve, body: GG-25 EKB or stainless steel CF8M,

seat: EPDM (Standard), metal seated, NBR, Viton or PTFE, packing: Synth. + PTFE,

flanges according to DIN 2501 PN 10

Type PA-L12: rising stem / nonrising handwheel

Type PA-L30: quick closing lever

Type PA-L40: pneumatic actuator, double acting

Type PA-L50: electric actuator, type AUMA SA

Material: cast iron EN-GJL-250 epoxy

Wafer type knife gate valve, body: GGG-50 EKB or stainless steel CF8M,

seat: natural Rubber (Standard), EPDM, NBR or Viton, packing: Synth. + PTFE,

flanges according to DIN 2501 PN 10

Type PA-GL12: rising stem / nonrising handwheel

Type PA-GL30: quick closing lever

Type PA-GL40: pneumatic actuator, double acting

Type PA-GL50: electric actuator, type AUMA SA

Resilient flat body gate valve according to DIN 3352-Teil 4, flange connection according to DIN, PN 16,

from DN 200: PN 10 or PN 16, body: GGG-50, EKB-coated, wedge: GGG-50 EPDM coated,

face to face according to F4, with topflange and output drive B3

Resilient oval body gate valve according to DIN 3352-Teil 4, flange connection according to DIN, PN 16,

from DN 200: PN 10 or PN 16, body: GGG-50, EKB-coated, wedge: GGG-50 EPDM coated,

face to face according to F5, with topflange and output drive B3

Resilient flat body gate valve according to DIN 3352-Teil 4, flange connection according to DIN, PN 16,

from DN 200: PN 10, body: GGG-40, EKB-coated, wedge: GGG-40 EPDM coated, with handwheel,

face to face according to F4,

electric actuator, manufacturer AUMA, type SA, manual override with handwheel, temperature: -40°C up

to +80°C, 2 limit switches, 2 torque limiter, protection class IP 67, ED 30%, voltage: 3~400V/50Hz

Resilient oval body gate valve according to DIN 3352-Teil 4, flange connection according to DIN, PN 16,

from DN 200: PN 10, body: GGG-40, EKB-coated, wedge: GGG-40 EPDM coated, with handwheel,

face to face according to F5,

electric actuator, manufacturer AUMA, type SA, manual override with handwheel, temperature: -40°C up

to +80°C, 2 limit switches, 2 torque limiter, protection class IP 67, ED 30%, voltage: 3~400V/50Hz

Resilient flat-body gate valve according to DIN 3352-Teil 4, flange connection according to DIN, PN 16,

from DN 200: PN 10, body: GGG-50, EKB-coated, wedge: GGG-50 EPDM coated, with handwheel,

face to face according to F4

Dokumente

Material:
Inner tube: galvanized steel
Outer pipe: PE
Lower valve protection: EN GJS-400-
15 (DN 50 - 200) / PE (DN 250 - 600)
Square: EN GJS-400-15
Screw material: A2
