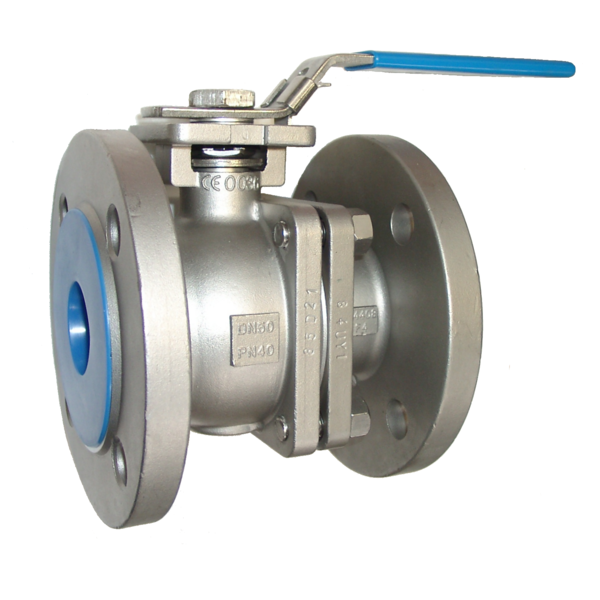

Flanged ball valve, type PA-19HP, PEEK-seats

Type PA-19HP.266.PE (PN 16)
Type PA-19HP.466.PE (PN 40)

full port, 2-pc., face to face according to DIN 3202 F4, from DN 125 F5, flange after DIN PN 10/40,
from DN 65 PN 10/16, handlever, operating temperature: max. 260°C,
body: stainless steel 1.4408, ball: 1.4408, seat: PEEK, release bore, with ISO-Directmountingpad
