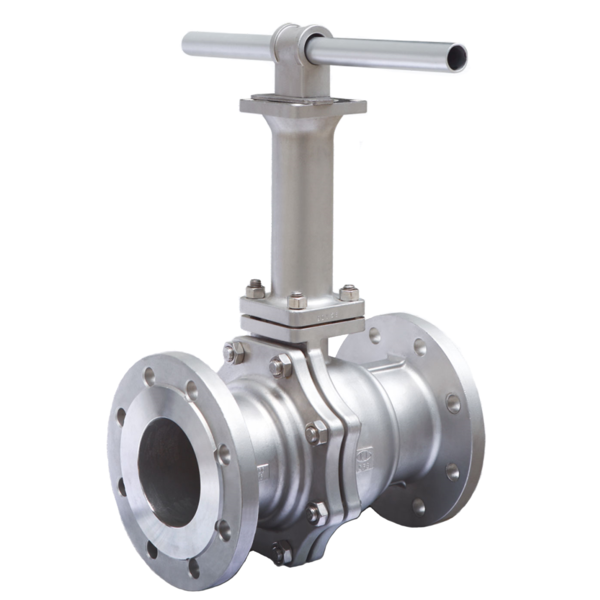

Cryogenic flanged ball valve, type PA-870, for low temperature up to -196°C

Type PA-870.266.P (PN 16)
Type PA-870.466.P (PN 40)

Full port, 2-pc., face to face according to EN 558, flange according to DIN PN 16 or PN 40,
operating temperature: -196 – up to +150°C, body: 1.4408, ball: 1.4408, seat: PCTFE, handlever,
release bore, with ISO-Directmountingpad
