Type VB

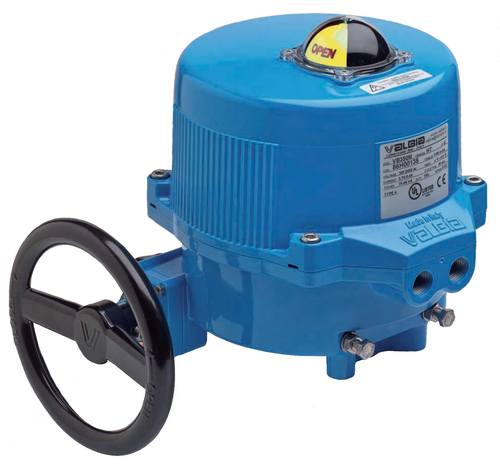

Electric actuator, brand Valbia, pivoting angle 90°, manual override with handwheel,
temperature: -20°C … +55°C, 2 free limit switches, torque limiter, protection: class IP 65,
ED 75% (VB015: 50%), voltage: 24V/115V/230V AC, 12V/24V DC

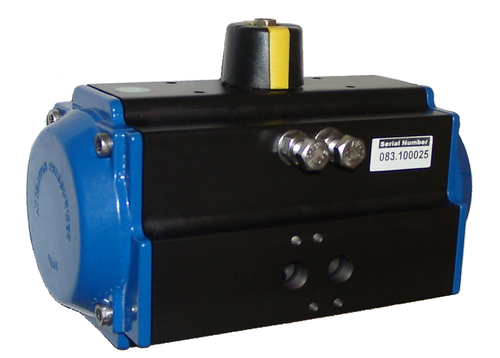

Pneumatic actuator, pivoting angle 90°, double or single acting (spring acting),
body and pistons: aluminium, seal: NBR,
temperature range: -20°C … 80°C, pressure rating: max. 8 bar
Type VB…M : Electric actuator, brand Valbia, pivoting angle 90°, aluminium body with polyether powder coating,
from VB110M manual override with handwheel, dome position indicator, temperature: -20°C … +55°C,
2 free limit switches, torque limiter, protection class: IP 67, ED 75%, voltage: 24V/100V-240V AC, 12V/24V DC
Pneumatic actuator, pivoting angle 90°, double or single acting (spring acting),
body and pistons: stainless steel, seal: NBR,
temperature range: -20°C … 80°C, pressure rating: max. 8 bar
Type ED
Torque range from 15 Nm to 50 Nm, Swing angle from 90° to 180°, Limit sensing,
3-phase and 1-phase AC Motors, Stall-proof synchronous Motors, mechanical position indicator,
voltage: 24V/115V/230V AC, 24V DC, 3~400V
Type EQ
Torque range from 15 Nm to 600 Nm, Swing angle from 90° to 180°, Limit and torque sensing,
3-phase and 1-phase AC Motors, Stall-proof synchronous Motors, Handwheel for manual Operation
mechanical position indicator, mechanical end stops in end positions, adjustable from outside,
voltage: 24V/115V/230V AC, 24V DC, 3~400V
Pneumatic actuator, pivoting angle 90° (180° on request), double or single acting (spring acting),
body and pistons: aluminium, seal: NBR, temperature range: -40°C ... 80°C, pressure rating: max. 8 bar,
torque: 14 up to 10007 Nm (double acting) and 5 up to 4068 Nm (spring return)
Type SQ and SA+GS
Electric actuator, brand AUMA, pivoting angle 90°, manual override with handwheel,
temperature: -40°C … +80°C, 2 limit switches, 2 torque limiter, protection class: IP 68,
voltage: 1~230V/50Hz and 3~400V/50Hz
Type SA
Electric actuator, brand AUMA, manual override with handwheel,
temperature: -40°C … +80°C, 2 limit switches, 2 torque limiter, protection class: IP 68,
voltage: 3~400V/50Hz
Type AM: with 3 indication lights
Type AC: with LCD display for status indication and programming support
