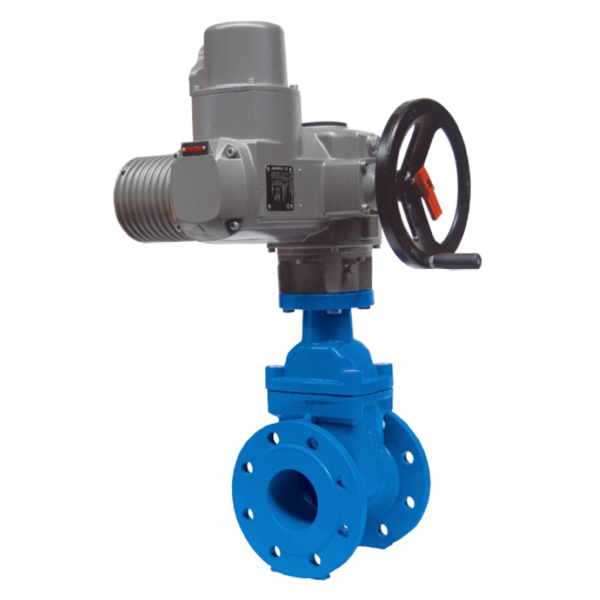

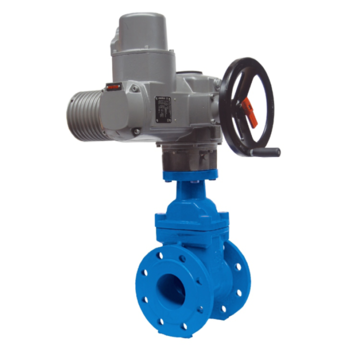

Resilient gate valve with AUMA actuator, type PA-014E

Resilient flat body gate valve according to DIN 3352-Teil 4, flange connection according to DIN, PN 16,

from DN 200: PN 10, body: GGG-40, EKB-coated, wedge: GGG-40 EPDM coated, with handwheel,

face to face according to F4,

electric actuator, manufacturer AUMA, type SA, manual override with handwheel, temperature: -40°C up

to +80°C, 2 limit switches, 2 torque limiter, protection class IP 67, ED 30%, voltage: 3~400V/50Hz
