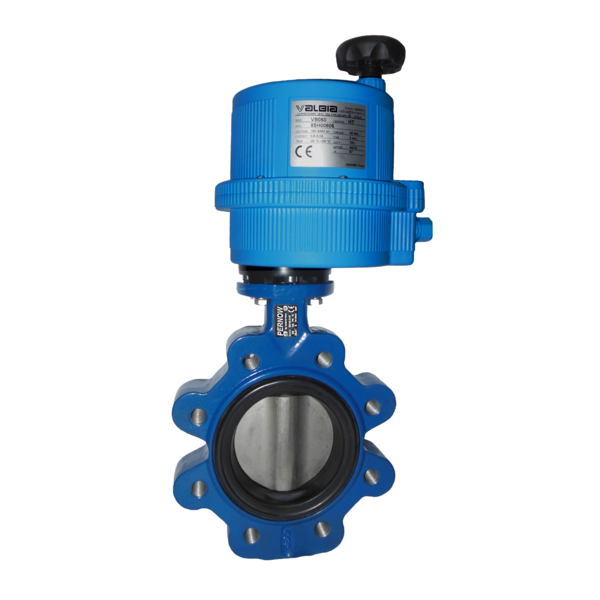

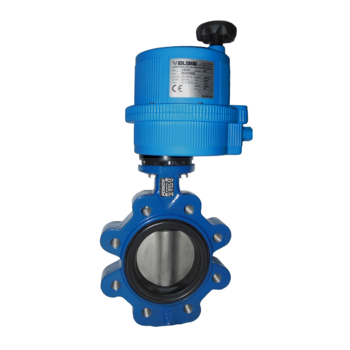

Butterfly valve, type PA-1140E, lug type, with electric actuator

With threaded holes, face to face according to EN 558-1 (K1),
suitable between flanges PN 10/16,  from DN 200 PN 10 or PN 16,
body: GG-25 EKB, disc: 1.4408, seat: EPDM, electric actuator, manufacturer Valbia, pivoting angle 90°,
manual override with handwheel,  temperature: -20°C up to +55°C, 2 free limit switches, torque limiter,
protection class IP 65,  ED 75% (VB015: 50%), voltage: 24V/115V/230V AC, 12V/24V DC
