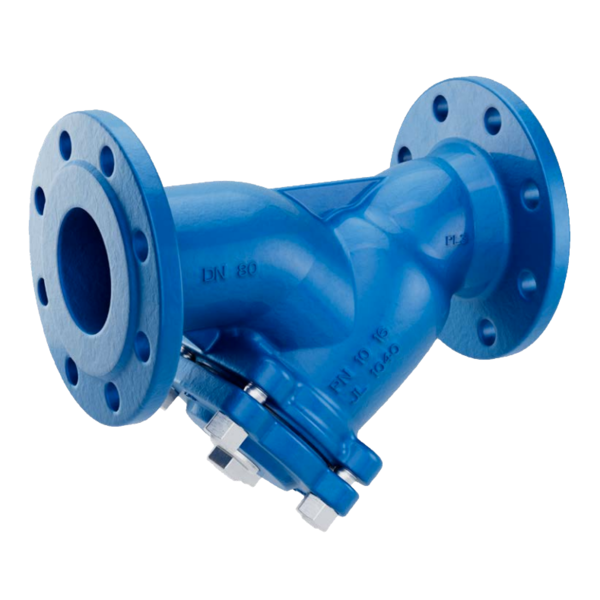

Strainer, type PA-050T, drinking water

Strainer in Y-Pattern, face to face according to EN 558-1, GR 1 (DIN 3202, F1), stainless steel screen: 1.4301,
mesh size DN 15-20: 0.54mm, mesh size DN 25-65: 0.87mm, mesh size DN 80-300: 1.18mm,
fine screen: 0.25mm, with drain screw, epoxy powder coating RAL5005 min. 250 μm,
sealing elements for drinking water according to EN 681, temperature: max. 50°C

Type PA-050T.215: Housing: EN GJL-250, PN 10/16
Type PA-050T.325: Housing: EN-GJS-400-18, PN 25
