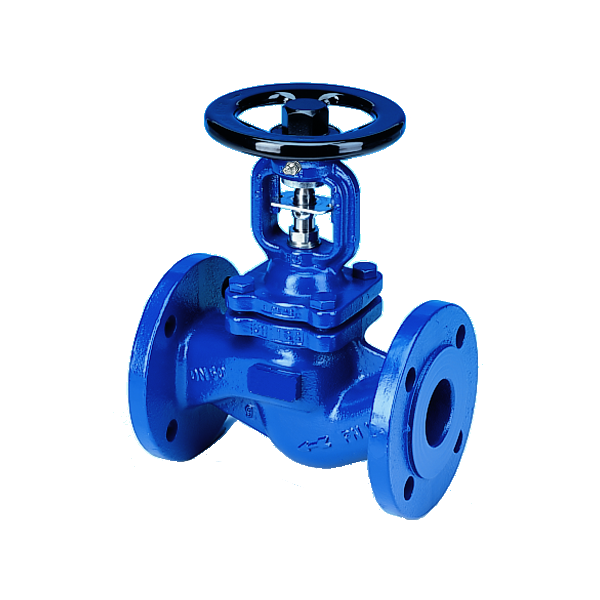

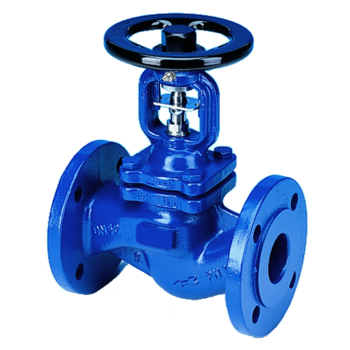

Globe valve with bellow seal, type ARI FABA

Maintenance free globe valve in straight through form, face to face: F1, metal seated, trim: stainless steel,

double wall stainless steel bellow seal, throttling plug as standard (up to DN 100), lubricating nipple as locking

device, secondary sealing: gland packing

Fig. 12.046: body: GG-25, PN 16, max. 300°C

Fig. 22.046: body: GGG-40.3, PN 16, max. 350°C

Fig. 23.046: body: GGG-40.3, PN 25, max. 350°C

Fig. 35.046: body: GS-C25, PN 40 from DN 300 PN 25 , max. 450°C

Fig. 52.046: Y-pattern, body: 1.4408, PN 16, max. 400°C

Fig. 55.046: Y-pattern, body: 1.4408, PN 40, from DN 200 PN 25, max. 400°C
