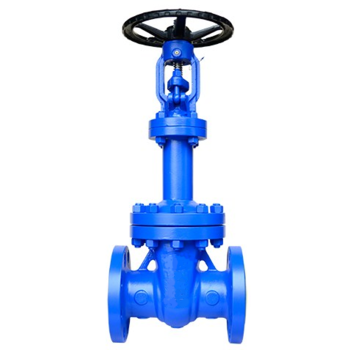

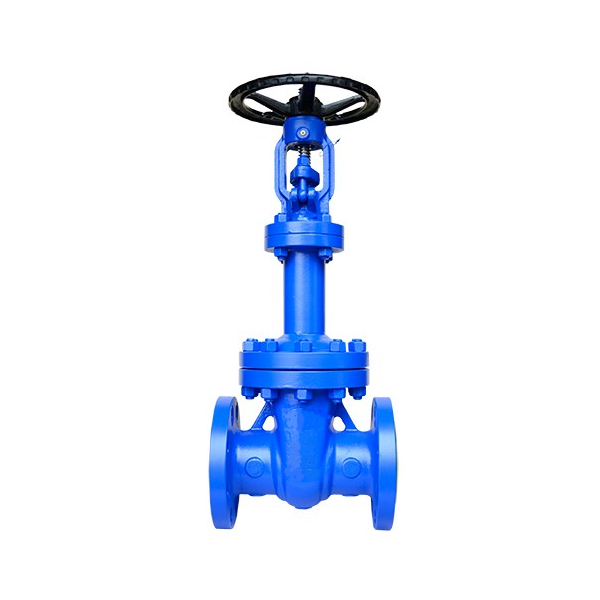

Gate valve, cast steel, bellow seal

Round body gate valve according to DIN 3352, flange connection according to DIN,
body: 1.0619, bellow: stainless steel AISI 304, trim: 13% Cr, outside screw and yoke,
with handwheel, face to face according to F5 (PN 10-25) and F7 (PN 40),
operating temperature: max. 400°C

Type PA-031BS: PN 16
Type PA-032BS: PN 25
Type PA-033BS: PN 40
