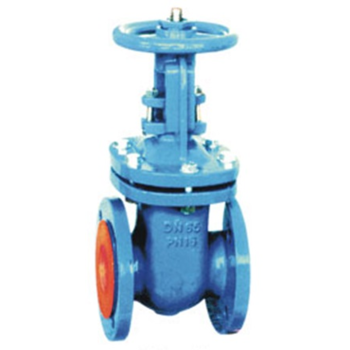

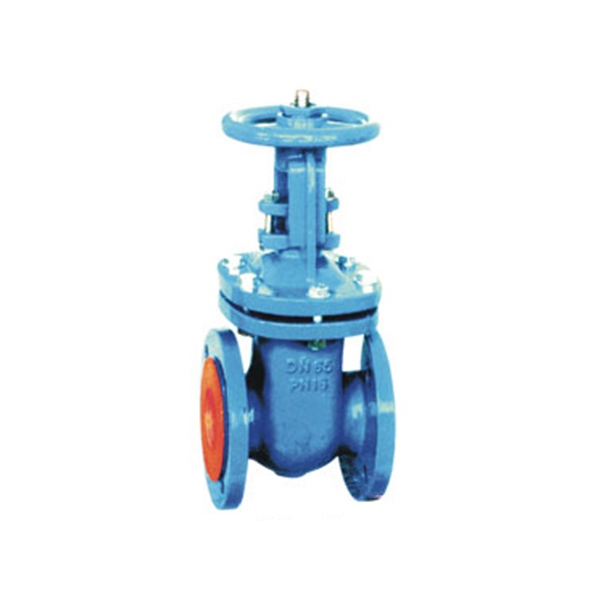

Gate valve, cast iron/SS, type PA-013

Flat body gate valve according to DIN 3352, part 2+3, PN 16, from DN 200: PN 10 or PN 16, body: GG-25,

flange connection according to DIN, face to face according to F4, with handwheel,

operating temperature: max. 200°C with outside stem, seat: stainless steel
