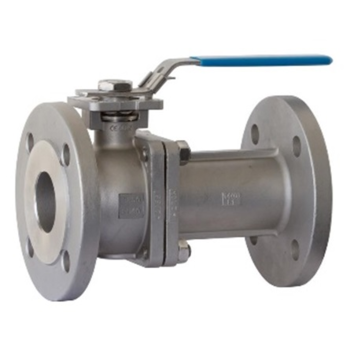

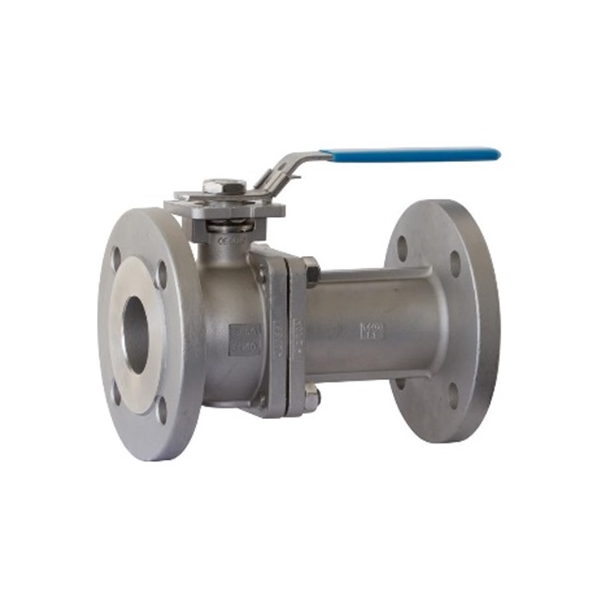

Flanged ball valve, Type PA-19D-F1, stainless steel

Type PA-19D-F1.266.P (PN 16)

Type PA-19D-F1.466.P (PN 40)

Full port, 2-pc., face to face according to DIN 3202 F1, flange according to DIN PN 16 or PN 40,  operating temperature: max. 180°C, body: 1.4408, ball: 1.4408, seat: TFM-1600, handlever, with ISO-Directmountingpad
