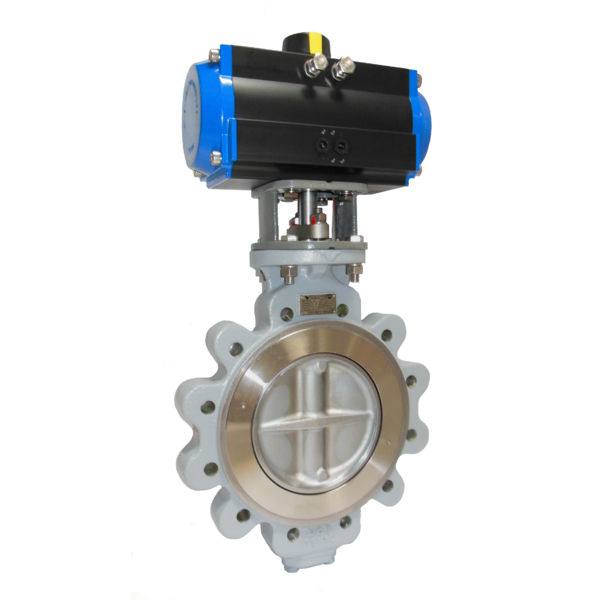

Double eccentric butterfly valve, type PA-933P, lug type, metal seated

With threaded holes, face to face according to EN 558-1 (K1), suitable between flanges PN 10/16, from DN 200 PN 10 or PN 16, topflange according to ISO 5211, operating temperature: max. 350°C, pneumatic actuator, double acting (DA) or spring return (SR), necessary actuating pressure: 6 bar PA-933P.266.M: body: CF8M, disc: CF8M, seat: metal
