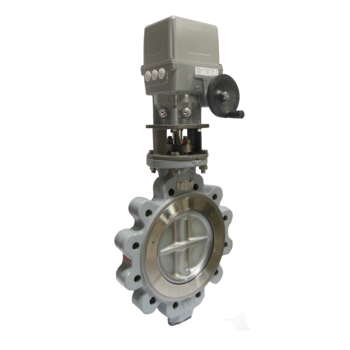

Double eccentric butterfly valve, type PA-933E, lug type, metal seated

With threaded holes, face to face according to EN 558-1 (K1), suitable between flanges PN 10/16,  (from DN 200: PN 10 or PN 16), topflange according to ISO 5211, operating temperature: max. 350°C,  electric actuator, manufacturer AUMA, pivoting angle 90°, manual override with handwheel,  temperature: -40°C up to +80°C, 2 limit switches, 2 torque limiter, protection class IP 67, ED 30%, voltage: 1~230V/50Hz and 3~400V/50Hz PA-933E.266.M: body: CF8M, disc: CF8M, seat: metal
