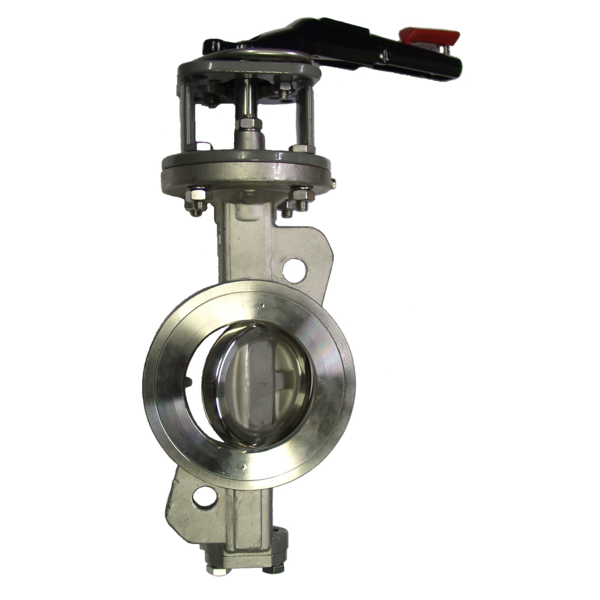

Double eccentric butterfly valve, type PA-930, wafer type, metal seated

With 2 holes, from DN 350 with 4 threaded holes, face to face according to EN 558-1 (K1),  suitable between flanges PN 10/16, from DN 350 PN 10 or PN 16, topflange according to ISO 5211,  with handlever, from DN 200 with gearbox and handwheel, operating temperature: max. 350°C

PA-930.235.M: body: WCB, disc: CF8, seat: metal Inconel 718

PA-930.266.M: body: CF8M, disc: CF8M, seat: metal Inconel 718
