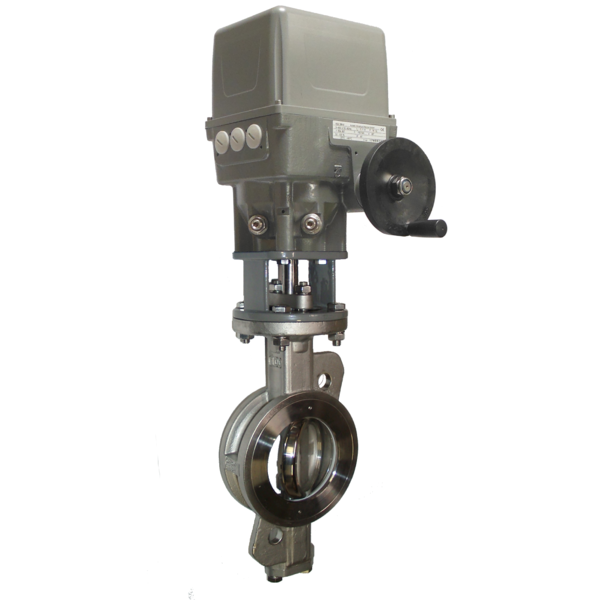

Double eccentric butterfly valve, type PA-910E, wafer type, soft seated

With 2 holes, from DN 350 with 4 threaded holes, face to face according to EN 558-1 (K1),  suitable between flanges PN 10/16, from DN 350 PN 10 or PN 16, topflange according to ISO 5211,  operating temperature: max. 210°C, electric actuator, manufacturer AUMA, pivoting angle 90°, manual override with handwheel,  temperature: -40°C up to +80°C, 2 limit switches, 2 torque limiter, protection class IP 67, ED 30%, voltage: 1~230V/50Hz and 3~400V/50Hz PA-910E.266.K: body: CF8M, disc: CF8M, seat: PTFE + 15% Graphite
