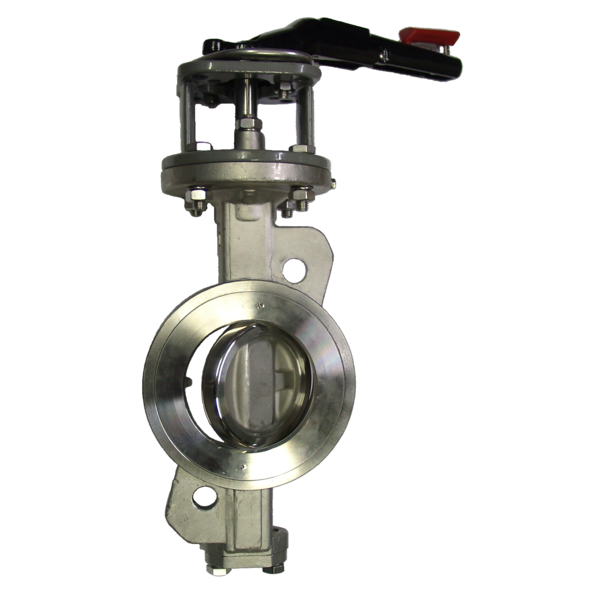

Double eccentric butterfly valve, type PA-910, wafer type, soft seated

With 2 holes, from DN 350 with 4 threaded holes, face to face according to EN 558-1 (K1),  suitable between flanges PN 10/16, from DN 350 PN 10 or PN 16, topflange according to ISO 5211,  with handlever, from DN 200 with gearbox and handwheel, operating temperature: max. 210°C

PA-910.235.K: body: WCB, disc: CF8, seat: PTFE + 15% Graphite

PA-910.266.K: body: CF8M, disc: CF8M, seat: PTFE + 15% Graphite
