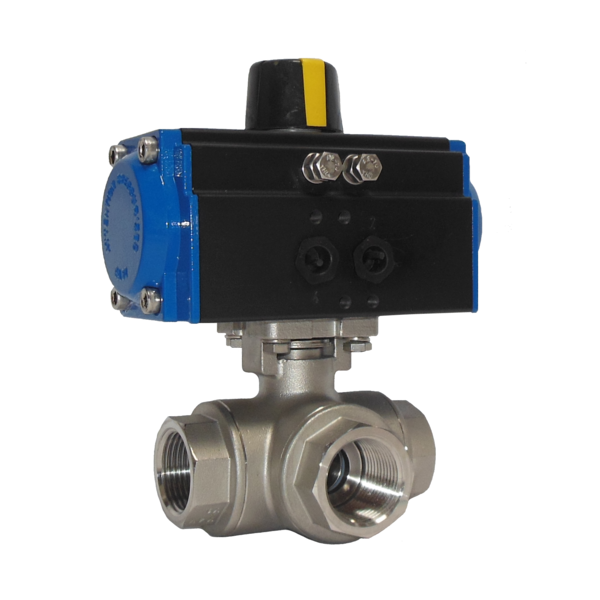

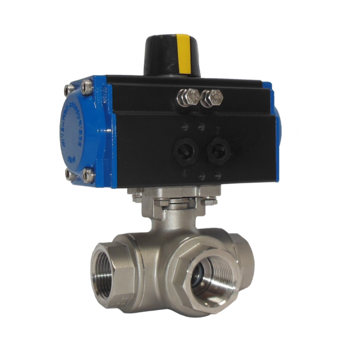

3-way ball valve (stainless steel) with pneumatic actuator, Typ PA-58P.566.P

Female threads, PN 63, reduced bore, L- or T- bore, operating temperature: max. 180°C, body: 1.4408, ball: 1.4408, seat: TFM-1600, pneumatic actuator, double acting (DA) or spring return (SR), necessary actuating pressure: 6 bar
