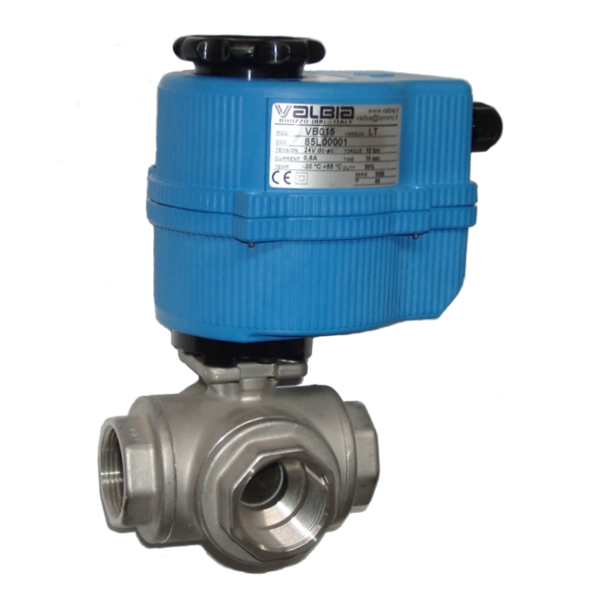

3-way ball valve (stainless steel), type PA-58E.566.P, with electric actuator

Female threads, PN 63, reduced bore, L- or T- bore, operating temperature: max. 180°C, body: 1.4408, ball: 1.4408, seat: TFM-1600, electric actuator, manufacturer Valbia, pivoting angle 90°, manual override with handwheel,  temperature: -20°C up to +55°C, 2 free limit switches, torque limiter, protection class IP 65,  ED 75% (VB015: 50%), voltage: 24V/115V/230V AC, 12V/24V DC
